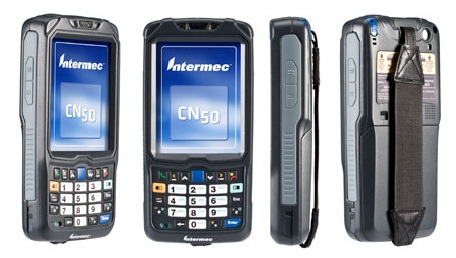

Intermec CN50 barcode scanning, rugged mobile phone enabled PDA for hand free barcode reading. Vehicle charger option

Printer friendly version

Intermec directory

Shop - Intermec | Intermec - Profile

Intermec. Portable / mobile wireless terminals (WiFi 802.11 / GPRS internet / Bluetooth / etc. ) Pocket PC, Microsoft Windows Mobile, CE 5.0 / 6.0, Visual Studio, .Net, flash, touch screen, etc.. Intermec CN50. Lowest price at barcode.co.uk

The Intermec CN50 wireless mobile computer is designed specifically for on-the-go field mobility customer service operations who need a single device that combines robust application processing, automated barcode data and document capture, digital camera functionality and the fastest 3.75G wireless WAN voice and data communication, all in a rugged, compact package.

With the class leading capabilities of the CN50 in their mobile workers' hands, enterprises can improve their business processes, expand their service offerings and reduce the cost and complexity of a field mobility solution.

Features

  • The industry’s most advanced rugged mobile computer
  • High performance communication and computing in a small and lightweight ruggedized design that is optimized for highly mobile field workers
  • Choice of WAN radio - 3.75G wireless WAN technology supports both voice and high-speed uplink and downlink data exchange to help improve worker productivity, 2.5G GPRS/EDGE ideal for regions where network providers do not support 3G data rates
  • Enhanced Mobile Document Imaging (eMDI) option enables users to capture high quality document images while on their route to help streamline back office operations and improve cash flow
  • Integrated digital compass and GPS radio provides instantaneous and real-time directional information to improve navigation for both pedestrian and vehicle-based applications
  • Built-in accelerometer senses position of the device to trigger display rotation
  • Standard features include both a high performance 3 MP color camera and an area imager for responsive 1D and 2D barcode reading
  • Choice of area imagers – EA11 optimized for scan intensive applications, EA21 optimized for document imaging with the capability to scan 1D/2D barcodes
  • Bluetooth® v2.1 EDR radio provides secure wireless connectivity to headsets, mobile printers and other Bluetooth compatible devices for simple and convenient connectivity
  • Wi-Fi certified 802.11 radio enables fast and secure voice communications or end-of-day synchronization with your enterprise network
  • Integrated cell phone provides high quality voice communications eliminating the need to carry a separate device
  • Windows Mobile 6.1 operating system promotes ease of integration and intuitive use by developers and users
  • Available with up to 256MB RAM and 512MB Flash Memory allows you to run multiple simultanous applications – fast
  • Available in QWERTY or numeric keyboards
  • Medallion® Complete service provides protection against unbudgeted and rising repair costs

Accessories

  • Vehicle holder
  • RAM mount
  • Quad battery charger
  • Four-bay multi-docks (charge only or charge and Ethernet)

Adapters :

  • Desktop AC adapter/Comm adapter (with USB port)
  • Vehicle power adapter

Display

  • 3.5”, 240 x 320 pixel (QVGA) trans-reflective TFT-LCD display
  • 65,536 (16bit RGB) colors
  • LED backlight
  • Touch screen

Environment

Operating Temperature : -10 C to +50 C (14 F to +122 F)
Storage Temperature : -20 C to +70 C (-4 F to +158 F)
Humidity : Non-condensing, 95%
Drop Survival : 1.524m (5 ft) 26 drops per MIL-STD 810G
Environmental Protection : IP54
Electrostatic Discharge : +/- 15kV air discharge
+/- 8kV direct discharge

Keypad

Numeric or QWERTY with backlit keypad

Memory and Storage

RAM Memory : 256 MB RAM (approx 150MB available for user applications)
Flash ROM : 512 MB Flash (approx 350 MB free for user applications)

Microprocessor

  • Main Processor ARM 11 @ 528 MHz
  • Radio Processor ARM 9 @ 528 MHz

Operating System

Window Mobile 6.1

Physical Characteristics

Dimensions with Extended battery pack : 15.4 x 7.4 x 2.8cm (6.05 x 2.93 x 1.09”)
Dimensions with standard battery pack : 15.4 x 7.4 x 2.8cm (6.05 x 2.93 x 1.09”)
Weight :

  • With standard battery 310gm (11 oz)
  • With extended battery 340 gm (12 oz)

Power

Standard Battery Pack : 3.7V, 1950 mAh
Extended Battery Pack : 3.7V, 3900 mAh
Battery Type/Supply : IEEE 1725 compliant, Li-Ion, removeable, rechargeable

Catalog sections | Previous product Previous product Next product Next product | Others in this category
Product: Intermec CN50 barcode scanning, rugged mobile phone enabled PDA for hand free barcode reading. Vehicle charger option
PART (MAIN ITEM) MFR DESCRIPTION PRICE QTY

CN50-851-061-007

CN50-851-061-007

Univ AC Adpt,12V/2.5A,W/BARREL,Conn,ROHS (NOT FOR USE IN NORTH AMERICA. - Requires country specific power cord)

£48.00

CN50-1-974029-020

CN50-1-974029-020

AC Power Cord, UK RoHS

£7.00

CN50-203-899-001

CN50-203-899-001

Kit, Handstrap Replacement, CN50 (5pack)

£53.00

CN50-203-900-001

CN50-203-900-001

Kit,Tethered Stylus, CN50 (5 pack)

£29.00

CN50-236-209-001

CN50-236-209-001

Cable Assy, USB-A to USB-microB, 1M (Used with CN50 desktop adapter (851-093-001) to PC USB port enabling quick data transfer.)

£17.00

CN50-318-038-001

CN50-318-038-001

CN50 Battery Pack, Std 1950mAh Li-Ion

£53.00

CN50-318-039-001

CN50-318-039-001

CN50 Battery Pack, Extended 3.9Ah Li-Ion

£95.00

CN50-321-471-002

CN50-321-471-002

AC Power Cord, Italy RoHS

£7.00

CN50-321-501-002

CN50-321-501-002

AC Power Cord, Denmark RoHS

£7.00

CN50-321-502-002

CN50-321-502-002

AC Power Cord, India/S Africa RoHS

£7.00

CN50-1-974027-025

CN50-1-974027-025

AC Power Cord, Europe RoHS

£7.00

CN50-815-066-001

CN50-815-066-001

Holster, Model CN50 Series

£41.00

CN50-H11576-ND

CN50-H11576-ND

Micro USB (Male) to Standard USB (Female). For connecting an accessory such as a memory stick.

£29.00

CN50-851-082-205

CN50-851-082-205

Univ Supply R/A 2.5x5.5 FWC5012 CEC/RoHS (AC adapter for MulitDock: Upt to 4 x CN50. Requires country specific power cord)

£39.00

CN50-851-093-101

CN50-851-093-101

Desktop Power / Comm Adapter (Provides Desktop Charging and USB port. Requires Country Specific Power Cord)

£63.00

CN50-852-068-001

CN50-852-068-001

Battery Charger, Quad CN50 (4-Bay Dock. Requires AC Adapter (851-061-007 ) and country specific power cord)

£174.00

CN50-852-070-001

CN50-852-070-001

Vehicle Power Adapter, CN50

£67.00

CN50-871-032-001

CN50-871-032-001

Multi-Dock, CN50 Ethernet (4-Bay Dock. Requires AC Adapter (851-082-205 ) and country specific power cord)

£373.00

CN50-871-032-002

CN50-871-032-002

Multi-Dock, CN50 Charge Only (4-Bay Dock. Requires AC Adapter (851-082-205 ) and country specific power cord)

£216.00

CN50-CN50ANU1EN00

CN50ANU1EN00

CN50 WM 6.1, 128 MB RAM, 512 MB ROM, GPS, Bluetooth, 802.11b/g, Digital Compass, EA21 2D Area Imager, 3.1 Megapixel Color Camera, WWAN GSM/GPRS/EDGE/UMTS (Numeric, WM6.1 WWE English)

£1,311.00

CN50-CN50ANU1LP00

CN50ANU1LP00

CN50 WM 6.1, 128 MB RAM, 512 MB ROM, GPS, Bluetooth, 802.11b/g, Digital Compass, EA21 2D Area Imager, 3.1 Megapixel Color Camera, WWAN GSM/GPRS/EDGE/UMTS (Numeric, WM6.1 LP Non-English Languages)

£1,311.00

CN50-CN50AQU1EN00

CN50AQU1EN00

CN50 WM 6.1, 128 MB RAM, 512 MB ROM, GPS, Bluetooth, 802.11b/g, Digital Compass, EA21 2D Area Imager, 3.1 Megapixel Color Camera, WWAN GSM/GPRS/EDGE/UMTS (QWERTY, WM6.1 WWE English)

£1,311.00

CN50-CN50AQU1LP00

CN50AQU1LP00

CN50 WM 6.1, 128 MB RAM, 512 MB ROM, GPS, Bluetooth, 802.11b/g, Digital Compass, EA21 2D Area Imager, 3.1 Megapixel Color Camera, WWAN GSM/GPRS/EDGE/UMTS (QWERTY, WM6.1 LP Non-English Languages)

£1,311.00

CN50-805-664-001

CN50-805-664-001

Vehicle Holder, CN50

£28.00

Click add to add items to a printable order, or a no obligation quote:
